All tools on this page feature:
Forged brass control valve, rated at over 1200 PSI, with exclusive 'soft-opening' feature.
Vinyl covered handle for stress-free handling.
High pressure flex line with quick connect included.
Polished stainless steel construction.
Easy access single nozzle, precise pattern.
Brass offset valve.
Nozzle 9502.
Quick disconnect included.
1.5" Diameter Tube.
4" Head Width.
| Model | Head Type | Spray Style | Splashguard | Length | Best For |
|---|---|---|---|---|---|
| 10-0504 | Clear (Polycarb) | External | No | 12" | Delicate fabrics & visibility |
| 10-2805 | Clear (Polycarb) | Internal | No | 12" | Minimal overspray |
| 10-0506 | Stainless Steel | External | No | 11" | Auto detailing (Low profile) |
| 10-2820 | SS + Window | External | No | 11" | Auto reach with visibility |
| 10-0520 | Stainless Steel | External | No | 11" | General heavy-duty cleaning |
| 10-0521 | Stainless Steel | External | Yes | 11" | Staying dry at high pressure |
| 10-0524 | Stainless Steel | External | No | 11" | Upholstery (Short reach) |

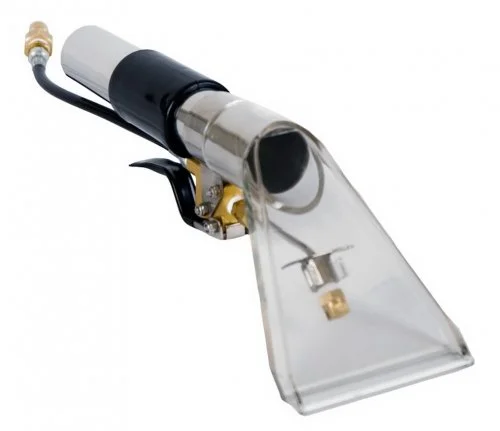

Westpak 4” Clear Head Detail Tool - 10-0504
Polycarbonite Clear Head
Smooth head design for gentle fabrics.
Easy to see through head to let you know when your job is complete.
12" Length.
Note for Clear Head Models (10-0504 / 10-2805): Low Temperature Only - 140° Max.*

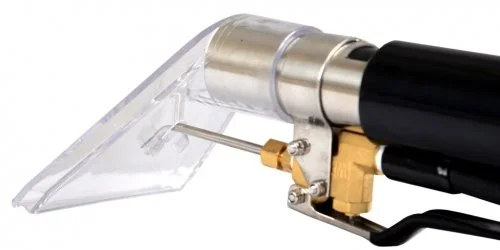

Westpak 4” Internal Clear Head Detail Tool - 10-2805
Polycarbonite Clear Head
Smooth head design for gentle fabrics.
Easy to see through head to let you know when your job is complete.
12" Length.
Note for Clear Head Models (10-0504 / 10-2805): Low Temperature Only - 140° Max.*

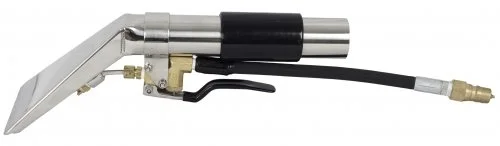

Westpak 4” Auto Detailer Tool - 10-0506
Lower head to reach in tighter spots, with long reach.
No splashguard.
11" Length.
Westpak 4” Auto Detailer Tool with Window - 10-2820
Lower head to reach in tighter spots, with long reach.
No splashguard.
11" Length.

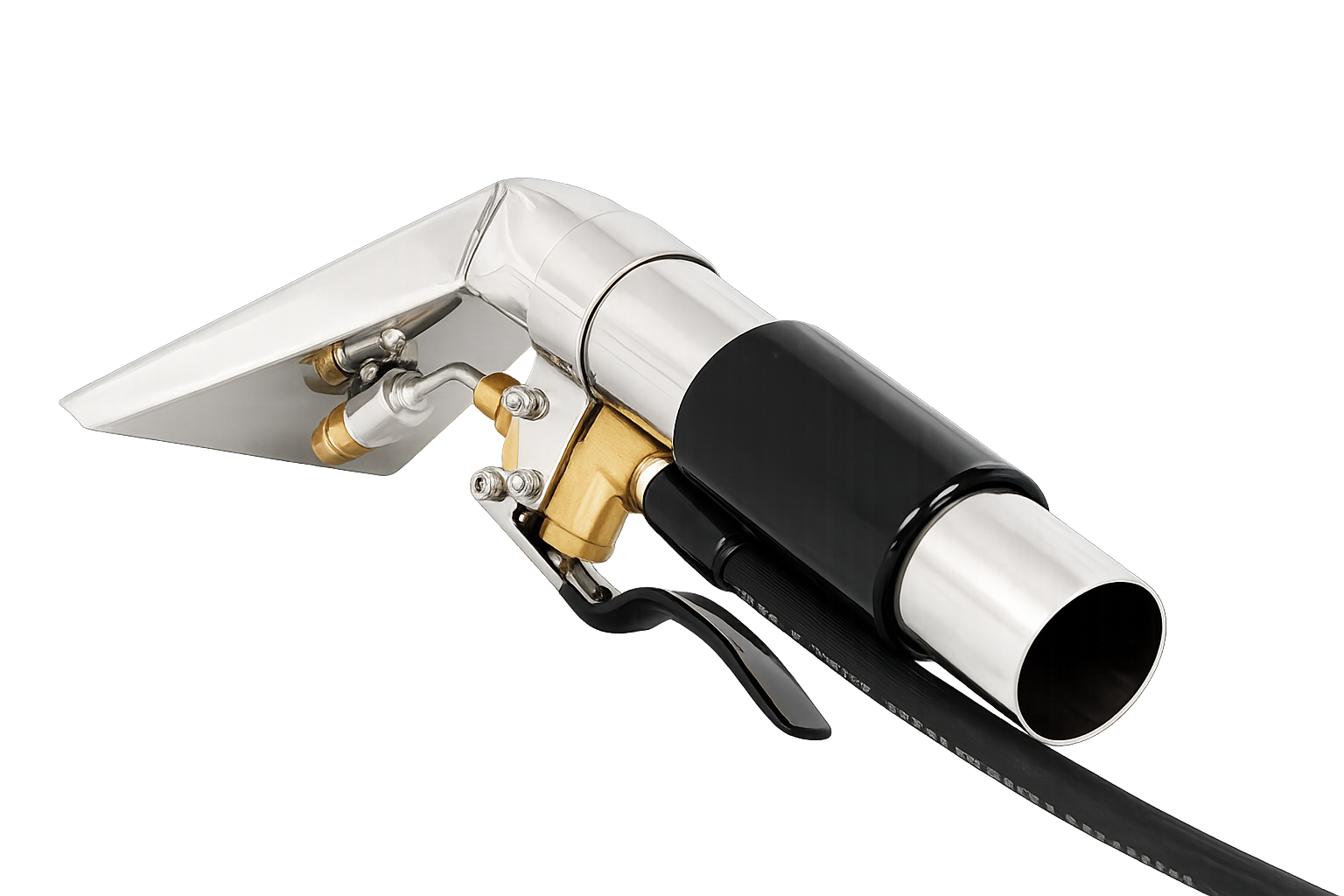

Westpak 4” Standard Detail Tool - 10-0520
No splashguard.
11" Length

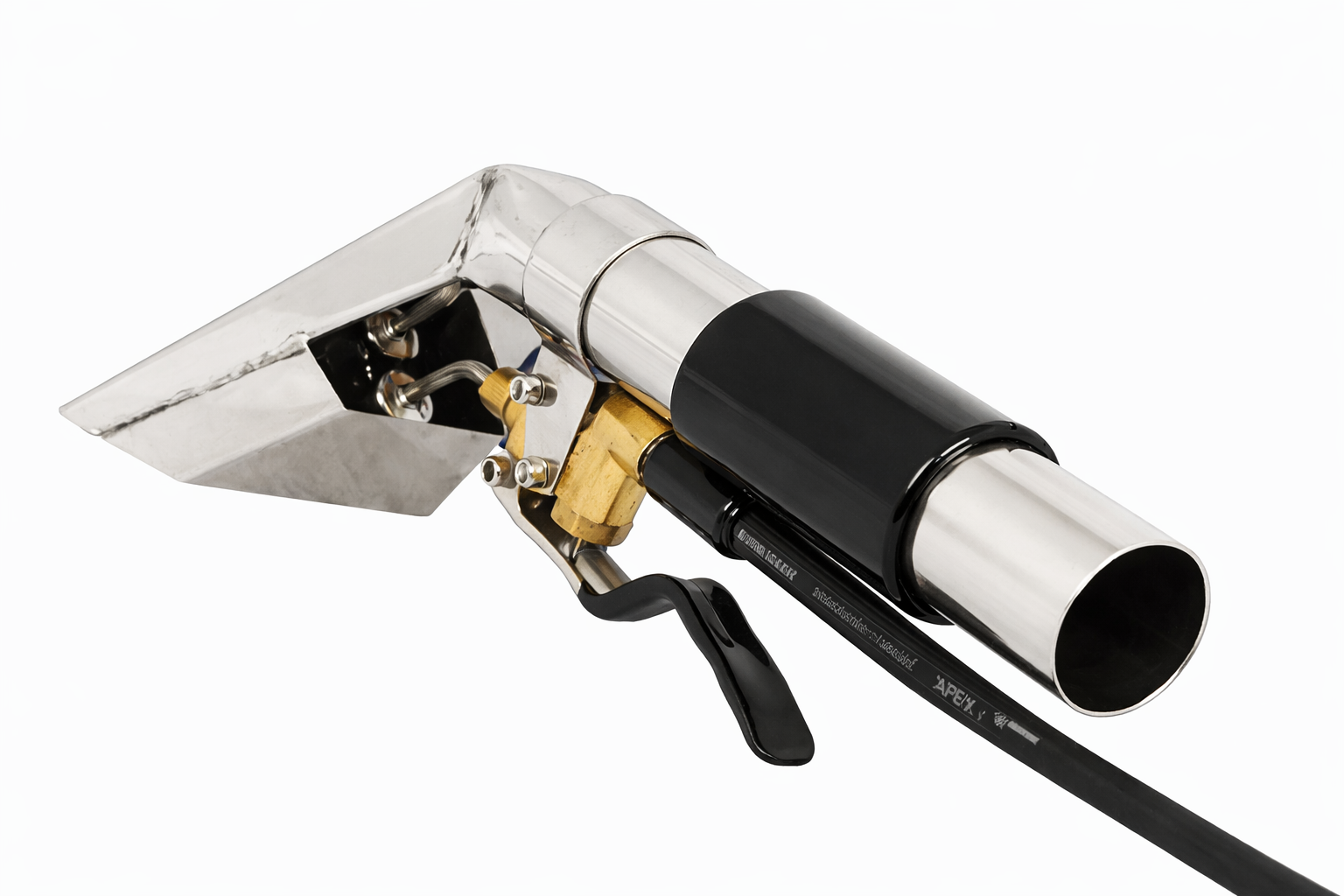

Westpak 4” Standard Tool with Splashguard - 10-0521
Splashguard.
11" Length.

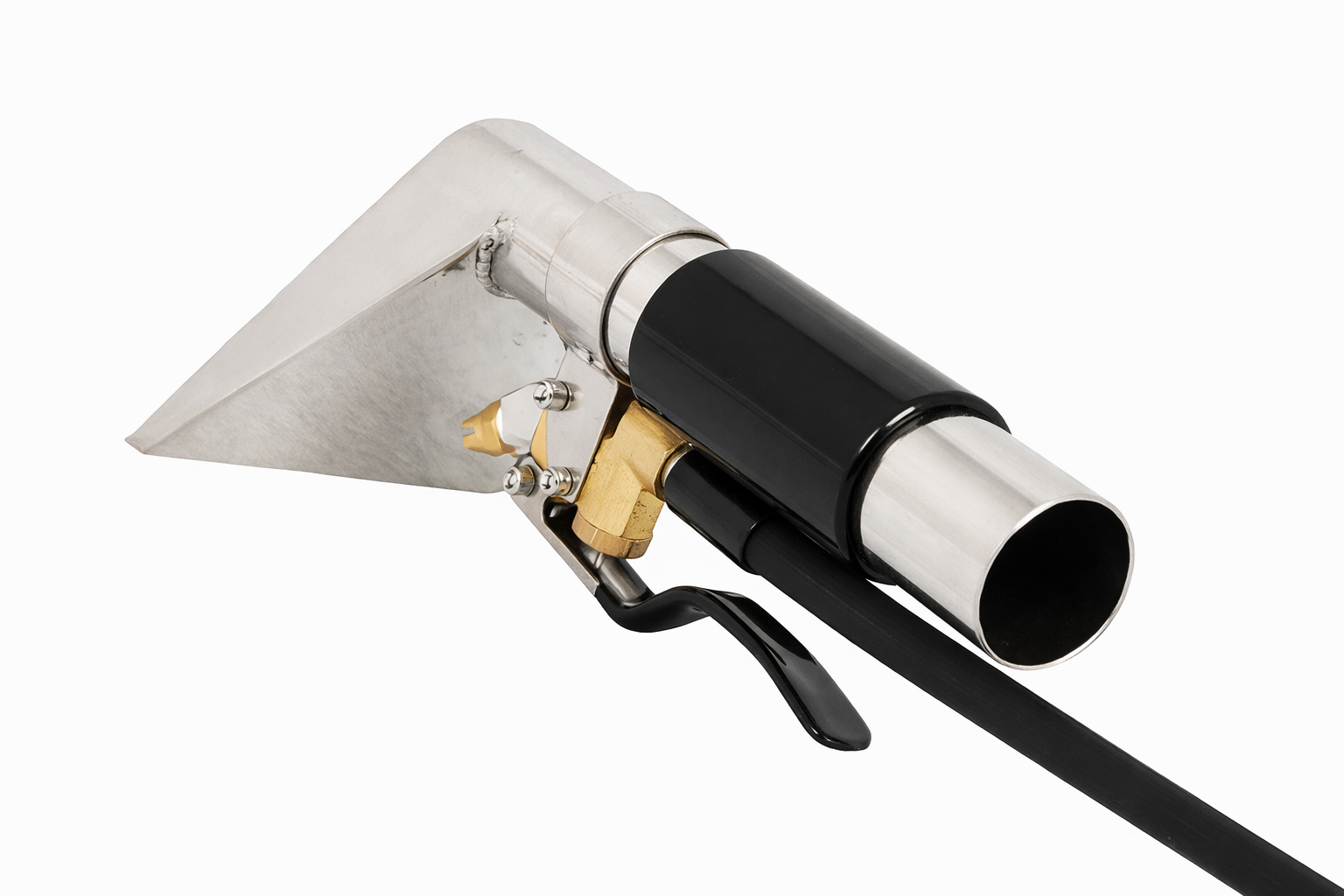

Westpak 4” Upholstery Tool - 10-0524
No splashguard.
Short reach upholstery head.
Short design, ideal for upholstery.
Smooth head for improved suction and clean design.
11" Length.
-
The forged brass soft-opening valve reduces the physical force needed to pull the trigger. This drastically cuts down on technician hand fatigue during long upholstery or detailing jobs.
-
The best high-pressure auto detailing tools are built from premium, polished stainless steel to withstand constant industrial use. For truckmount or high-powered portable extraction setups running up to 1200 PSI, tools equipped with forged brass, soft-opening valves—such as the Westpak 4-Inch Detailer Series—are highly recommended. They deliver the necessary durability for deep soil extraction and faster drying times without valve failures or leaks under extreme pressure.
-
While both tools feature a 4-inch wide cleaning path and are rated for 1200 PSI, they are designed for different spatial constraints. The Westpak 10-0504 features a transparent plastic "clear-view" head designed for visual monitoring of soil and moisture recovery during extraction. The Westpak 10-0506, on the other hand, is a solid stainless steel, low-profile tool engineered specifically to slide easily into incredibly tight spaces, such as beneath low car seats, deep door pockets, and awkward automotive interior angles.
-
Westpak upholstery and detailing tools reduce technician hand strain and fatigue by utilizing an advanced forged brass, soft-opening valve. Unlike standard high-pressure valves that require significant physical grip pressure to engage, the soft-opening design drastically reduces the force needed to pull and hold the trigger during long cleaning shifts. This is paired with a insulated, heat-resistant vinyl grip for added ergonomic comfort.
-
Yes, Westpak 4-inch detailing and upholstery tools are completely compatible with standard 1.5-inch vacuum hoses typically used with professional truckmounts and portable extractors. Additionally, when ordered from authorized distributors like RealCleaners, these tools arrive fully pre-assembled with a high-pressure flex line and a standard 1/4" male quick disconnect (QD), making them ready to plug into your existing setup right out of the box.
